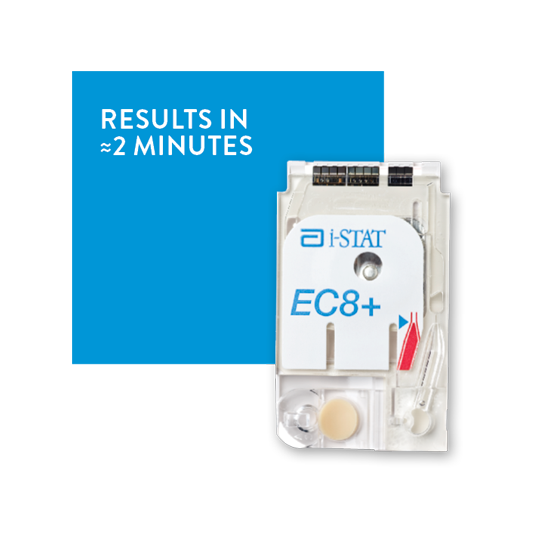

i-STAT EC8+ Cartridge
Providing lab-quality results fast when every minute counts.
Cartridge containing tests for electrolytes, chemistries, blood gases, hematocrit & hemoglobin
Benefits
Cartridge Details
|
Chemistries/ Electrolytes |
Hematology |
Blood Gases |
| Sodium (Na) |
| Potassium (K) |
| Chloride (Cl) |
| Anion Gap* |
| Glucose (Glu) |
| Urea Nitrogen (BUN)/Urea |
| Hematocrit (Hct) |
| Hemoglobin* (Hgb) |
| pH |
| PCO2 |
| TCO2* |
| HCO3* |
| Base Excess (BE)* |
*Calculated
Helpful Documents
PRODUCT DOCUMENTS
specifications
- DESCRIPTION:
- SAMPLE SIZE: 65μL
- SAMPLE TYPE: Arterial, venous, or capillary whole blood
Expected Values
|
Chemistries/ Electrolytes |
Hematology |
Blood Gases |
| Reportable Range | |
| Sodium (Na) | 100-180 mmol/L (mEq/L) |
| Potassium (K) | 2.0-9.0 mmol/L (mEq/L) |
| Chloride (Cl) | 65-140 mmol/L (mEq/L) |
| Anion Gap* | (10)-(+99) mmol/L |
| Glucose (Glu) | 1.1 - 38.9 mmol/L, 20-700 mg/dL, 0.20-7.00 g/dL, |
| (BUN)/Urea Nitrogen | 3-140 mg/dL |
| Urea | 1-50 mmol/L, 6-300 mg/dL, 0.06-3.00 g/L |
| Hematocrit (Hct) | 15-75% PCV, 0.15-0.75 Fraction |
| Hemoglobin* (Hgb) | 5.1-25.5 g/dL |
| pH | 6.5-8.2 |
| PCO2 | 5-130 mmHg, 0.67 - 17.33 kPa |
| TCO2* | 5-50 mmol/L (mEq/L) |
| HCO3* | 1.0-85.0 mmol/L (mEq/L) |
| Base Excess (BE)* | (-30)-(+30) mmol/L (mEq/L) |
*Calculated
Reference ranges (sometimes referred to as normal ranges) in the default Customization profile can be found behind login on the i-STAT Cartridge and Test Information (CTI) Sheets/Instructions for Use (IFU) page. This page is only accessible to registered i-STAT customers.
PRODUCT CODE
| i-STAT System | Code |
|---|---|
i-STAT EC8+ | 03P79-25 |
