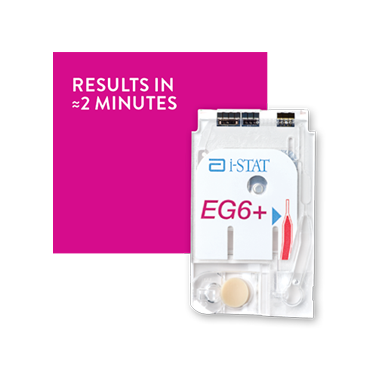

i-STAT EG6+ Cartridge
Providing lab-quality results fast when every minute counts.
Blood gas panel plus electrolytes
Benefits
Cartridge Details
|
Chemistries/ Electrolytes |
Hematology |
Blood Gases |
| Sodium (Na) |
| Potassium (K) |
| Hematocrit (Hct) |
| Hemoglobin* (Hgb) |
| pH |
| PCO2 |
| POi |
| TCO2* |
| HCO3* |
| Base Excess (BE)* |
| sO2* |
*Calculated
Helpful Documents
PRODUCT DOCUMENTS
specifications
- DESCRIPTION:
- SAMPLE SIZE: 95μL
- SAMPLE TYPE: Arterial, venous, or capillary whole blood
Expected Values
|
Chemistries/ Electrolytes |
Hematology |
Blood Gases |
| Reportable Range | |
| Sodium (Na) | 100-180 mmol/L (mEq/L) |
| Potassium (K) | 2.0-9.0 mmol/L (mEq/L) |
| Hematocrit (Hct) | 15-75% PCV, 0.15-0.75 Fraction |
| Hemoglobin* (Hgb) | 5.1-25.5 g/dL, 51-255 g/L, 3.2-15.8 mmol/L |
| pH | 6.5-8.2 |
| PCO2 | 5-130 mmHg, 0.67-17.33 kPa |
| PO2 | 5-800 mmHg, 0.7-106.6 kPa |
| TCO2* | 5-50 mmol/L (mEq/L) |
| HCO3* | 1.0-85.0 mmol/L (mEq/L) |
| Base Excess (BE)* | (-30)-(+30) mmol/L (mEq/L) |
| sO2* | 0-100% |
*Calculated
Reference ranges (sometimes referred to as normal ranges) in the default Customization profile can be found behind login on the i-STAT Cartridge and Test Information (CTI) Sheets/Instructions for Use (IFU) page. This page is only accessible to registered i-STAT customers.
PRODUCT CODE
| i-STAT System | Code |
|---|---|
i-STAT EG6+ | 03P77-25 |
