GLOBAL POINT OF CARE

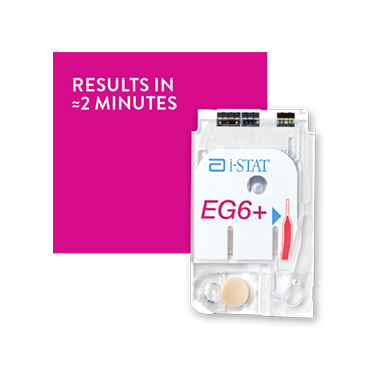

i-STAT EG6+ Cartridge
Providing lab-quality results fast when every minute counts.
Blood gas panel plus electrolytes

Benefits
Cartridge Details
Chemistries/ Electrolytes |
Hematology |
Blood Gases |
Sodium (Na) |
Potassium (K) |
Hematocrit (Hct) |
Hemoglobin* (Hgb) |
pH |
PCO2 |
POi |
TCO2* |
HCO3* |
Base Excess (BE)* |
sO2* |
*Calculated
Helpful Documents
PRODUCT DOCUMENTS
specifications
- DESCRIPTION:
- SAMPLE SIZE: 95μL
- SAMPLE TYPE: Arterial, venous, or capillary whole blood
Expected Values
Chemistries/ Electrolytes |
Hematology |
Blood Gases |
Reportable Range | |
Sodium (Na) | 100-180 mmol/L (mEq/L) |
Potassium (K) | 2.0-9.0 mmol/L (mEq/L) |
Hematocrit (Hct) | 15-75% PCV, 0.15-0.75 Fraction |
Hemoglobin* (Hgb) | 5.1-25.5 g/dL, 51-255 g/L, 3.2-15.8 mmol/L |
pH | 6.5-8.2 |
PCO2 | 5-130 mmHg, 0.67-17.33 kPa |
PO2 | 5-800 mmHg, 0.7-106.6 kPa |
TCO2* | 5-50 mmol/L (mEq/L) |
HCO3* | 1.0-85.0 mmol/L (mEq/L) |
Base Excess (BE)* | (-30)-(+30) mmol/L (mEq/L) |
sO2* | 0-100% |
*Calculated
Reference ranges (sometimes referred to as normal ranges) in the default Customization profile can be found behind login on the i-STAT Cartridge and Test Information (CTI) Sheets/Instructions for Use (IFU) page. This page is only accessible to registered i-STAT customers.
PRODUCT CODE
i-STAT System | Code |
---|---|
i-STAT EG6+ | 03P77-25 |
