Global point of care

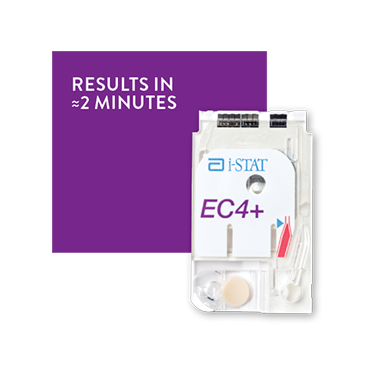

i-STAT EC4+ Cartridge
Providing lab-quality results fast when every minute counts.
Cartridge containing tests for sodium, potassium, glucose, hematocrit & hemoglobin
Benefits
Cartridge Details
| Chemistries/Electrolytes | Hematology |
| Sodium (Na) |
| Potassium (K) |
| Glucose (Glu) |
| Hematocrit (Hct) |
| Hemoglobin* (Hgb) |
*Calculated
Helpful Documents
PRODUCT DOCUMENTS
SPECIFICATIONS
- DESCRIPTION: Cartridge containing tests for sodium, potassium, glucose, hematocrit & hemoglobin
- SAMPLE SIZE: 65μL
- SAMPLE TYPE: Arterial, capillary, or other venous whole blood sample
Expected Values
| Chemistries/Electrolytes | Blood Gases |
| Reportable Range | |
| Sodium (Na) | 100-180 mmol/L (mEq/L) |
| Potassium (K) | 2.0-9.0 mmol/L (mEq/L) |
| Glucose (Glu) | 1.1-38.9 mmol/L, 20-700 mg/dL, 0.20-7.00 g/L |
| Hematocrit (Hct) | 15-75%PCV, 0.15-0.75 Fraction |
| Hemoglobin* (Hgb) | 5.1-25.5 g/dL, 51-255 g/L, 3.2-15.8 mmol/L |
*Calculated
Reference ranges (sometimes referred to as normal ranges) in the default Customization profile can be found behind login on the i-STAT Cartridge and Test Information (CTI) Sheets/Instructions for Use (IFU) page. This page is only accessible to registered i-STAT customers.
PRODUCT CODES
| i-STAT System | Code |
|---|---|
| i-STAT EC4+ | 03P81-25 |
