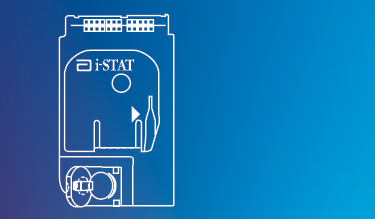

i-STAT CG8+ Cartridge
Providing lab-quality results fast when every minute counts.
Na, K, Hct, Glu, iCa, and Blood Gas results in ≈2 minutes
Benefits
The i-STAT CG8+ cartridge is a unique combination assay with simultaneous rapid measurement of blood chemistries, gases, and hematology parameters. The cartridge provides chemistries that are important in the diagnosis and treatment of patients with hypertension, dehydration, cardiac distress, renal impairment, hypoglycemia, and dysfunction of enzymatic membrane transport at a cellular level. It also provides quantitative hematocrit and blood gas results to assess blood oxygenation and respiratory status.
Cartridge Details
| Chemistries/ Electrolytes | Hematology | Blood Gases |
| Sodium (Na) |
| Potassium (K) |
| Ionized Calcium (iCa) |
| Glucose (Glu) |
| Hematocrit (Hct) |
| Hemoglobin* (Hgb) |
| pH |
| PCO2 |
| PO2 |
| TCO2* |
| HCO3* |
| Base Excess (BE)* |
| sO2* |
*Calculated
Access comprehensive materials for tranisitioning to the updated labeling for the i-STAT CG8+ cartridge.
Helpful Documents
PRODUCT DOCUMENTS
- CG8+ Cartridge IFU (ART-784173-00A.pdf)
- i-STAT CG8+ Product Specifications
- To access product labeling documents click one of the following: Instructions for Use, Value Assignment Sheets, Documentation,
or Safety Data Sheets.
specifications
CG8+ - INTENDED USE
The i-STAT CG8+ cartridge with the i-STAT 1 System is intended for use in the in vitro quantification of sodium, potassium, ionized calcium, glucose, hematocrit, pH, partial pressure of oxygen (PO2), and partial pressure of carbon dioxide (PCO2) in arterial or venous whole blood in point of care or clinical laboratory settings.
The i-STAT CG8+ cartridge with the i-STAT 1 System is intended for use in the in vitro quantification of sodium, glucose, hematocrit, pH, partial pressure of oxygen (PO2), and partial pressure of carbon dioxide (PCO2) in capillary whole blood in point of care or clinical laboratory settings.
- DESCRIPTION: Blood gas panel plus electrolytes including glucose and ionized calcium measurement
- SAMPLE SIZE: 95μL
- SAMPLE TYPE: Arterial, venous, or capillary whole blood
Expected Values
| Chemistries/Electrolytes | Hematology | Blood Gases |
| Reportable Range | |
| Sodium (Na) | 100-180 mmol/L (mEq/L) |
| Potassium (K) | 2.0-9.0 mmol/L (mEq/L) |
| Ionized Calcium (iCa) | 0.25-2.50 mmol/L, 1.0-10.0 mg/dL |
| Glucose (Glu) | 1.1-38.9 mmol/L, 20-700 mg/dL, 0.20-7.00 g/L |
| Hematocrit (Hct) | 15-75%PCV, 0.15-0.75 Fraction |
| Hemoglobin* (Hgb) | 5.1-25.5 g/dL, 51-255 g/L, 3.2-15.8 mmol/L |
| pH | 6.50-7.80 |
| PCO2 | 5-130 mmHg, 0.67-17.33 kPa |
| PO2 | 5-700 mmHg, 0.7-106.6 kPa |
| TCO2* | 5-50 mmol/L (mEq/L) |
| HCO3* | 1.0-85.0 mmol/L (mEq/L) |
| Base Excess (BE)* | (-30)-(+30) mmol/L (mEq/L) |
| sO2* | 0-100% |
*Calculated
Reference ranges (sometimes referred to as normal ranges) in the default Customization profile can be found on the i-STAT Instructions
for Use (IFU) page.
PRODUCT CODES
| i-STAT System | Code | Quantity per Box |
|---|---|---|
| i-STAT CG8+ | 03P88-25 | 25 |
| i-STAT TriControls Control Level 1 | 05P71-01 | 10 |
| i-STAT TriControls Control Level 2 | 05P72-01 | 10 |
| i-STAT TriControls Control Level 3 | 05P73-01 | 10 |
| i-STAT TriControl Calibration Verification Levels 1-5 | 05P70-01 | 20 (4 ampules of each calibration verification level) |
